Relationship Sets | DBMS

Database Management System

Relationship in DBMS-



Before you go through this article, make sure that you have gone through the previous article on Introduction to ER Diagrams.



A relationship is defined as an association among several entities.



Example-



‘Enrolled in’ is a relationship that exists between entities Student and Course.





Also read- Entity Sets in DBMS



Relationship Set-



A relationship set is a set of relationships of same type.



Example-

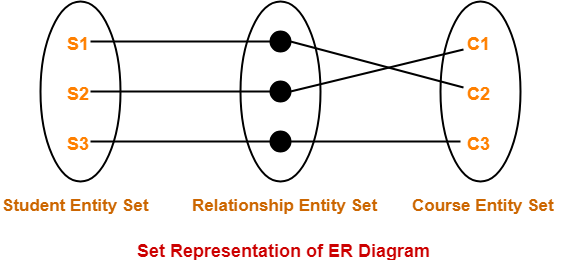

Set representation of above ER diagram is-





Degree of a Relationship Set-



The number of entity sets that participate in a relationship set is termed as the degree of that relationship set. Thus,



Degree of a relationship set = Number of entity sets participating in a relationship set



Types of Relationship Sets-



On the basis of degree of a relationship set, a relationship set can be classified into the following types-





  1. Unary relationship set
  2. Binary relationship set
  3. Ternary relationship set
  4. N-ary relationship set

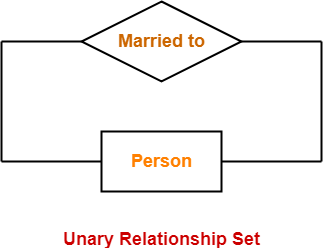

1. Unary Relationship Set-



Unary relationship set is a relationship set where only one entity set participates in a relationship set.



Example-

One person is married to only one person





2. Binary Relationship Set-



Binary relationship set is a relationship set where two entity sets participate in a relationship set.



Example-

Student is enrolled in a Course





3. Ternary Relationship Set-



Ternary relationship set is a relationship set where three entity sets participate in a relationship set.



Example-





4. N-ary Relationship Set-



N-ary relationship set is a relationship set where ‘n’ entity sets participate in a relationship set.



Next Article- Cardinality in ER Diagram
